McLaren 720 & 765 Air Intake Baffle Failure – Causes, Diagnosis & Solutions

The McLaren 720S uses a sophisticated high-flow intake system to feed its twin turbochargers while controlling intake noise and maintaining the airflow characteristics required by the M840T 4.0-litre twin-turbocharged V8.

Within the intake system are moulded plastic sections incorporating acoustic baffles or silencing elements. Although these components have no moving parts, deterioration or fracture can become a serious issue because of their position upstream of the turbocharger compressor wheels.

McLaren 720S intake baffle failure should therefore not be regarded simply as an intake-noise problem.

If part of the baffle breaks away, fragments can potentially travel towards the turbocharger inlet. At the extremely high rotational speeds experienced by a turbocharger compressor, even relatively small foreign objects can damage compressor blades and disturb rotor balance.

For this reason, a suspected intake-baffle failure deserves immediate inspection.

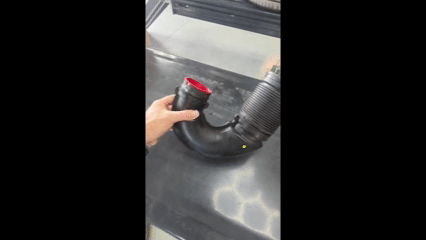

What Is the McLaren 720S Intake Baffle?

The intake baffles form part of the induction system positioned upstream of the turbochargers.

Their primary purpose is acoustic control. Intake systems generate pressure pulses and resonant frequencies as the engine consumes air and the turbochargers accelerate. Manufacturers use chambers, resonators and internal baffles to attenuate selected frequencies without excessively restricting airflow.

On the 720S, these components operate in an environment exposed to:

• Continuous engine-bay heat

• Repeated thermal cycling

• Turbocharger-induced airflow

• Engine vibration

• Road vibration

• Pressure pulsation

• Long-term material ageing

Over thousands of heat cycles, moulded polymer components can gradually become more brittle.

Small cracks can eventually propagate through the material until part of the internal structure separates.

Why Can the McLaren Intake Baffle Fail?

Thermal Cycling and Material Fatigue

One of the main mechanisms is repeated heating and cooling.

Every drive cycle raises the temperature of the engine compartment. Once the vehicle is switched off, the intake components cool again.

This continual expansion and contraction creates thermal stress.

After enough cycles, microscopic cracks can develop around moulded transitions, mounting areas, seams or other stress concentrations.

As the material ages, these cracks may grow.

Engine and Turbocharger Vibration

The intake assembly is also continuously exposed to vibration generated by the engine, drivetrain and road surface.

Normally the component tolerates this without difficulty.

However, once ageing or thermal cycling has weakened the material, vibration can accelerate an existing crack.

Heat Soak

The rear-engine architecture of the 720S creates substantial temperatures around the engine and turbocharger area.

After aggressive driving or track use, temperatures can remain elevated even after the engine has been switched off.

This post-shutdown heat soak contributes to long-term thermal ageing of surrounding polymer components.

Long-Term Polymer Ageing

Automotive-grade plastics are specifically engineered for engine-bay environments, but no polymer remains completely immune to ageing.

Eventually, a previously flexible component can become increasingly brittle.

Why a Broken Intake Baffle Can Damage the Turbocharger

This is the main technical concern.

The turbocharger compressor wheel operates at extremely high rotational speed.

If a fragment of plastic travels through the inlet and contacts the compressor wheel, the result is known as Foreign Object Damage, or FOD.

Foreign Object Damage to the Compressor Wheel

Potential damage includes:

• Compressor blade nicks

• Chipped blade edges

• Bent compressor blades

• Surface impact marks

• Compressor wheel imbalance

• Reduced compressor efficiency

• Increased turbocharger vibration

The severity depends on the size, mass and shape of the fragment and where it contacts the compressor wheel.

A relatively small object can be significant when it strikes a rapidly rotating compressor.

Why Compressor Imbalance Matters

Turbocharger rotating assemblies operate with extremely tight tolerances.

If one compressor blade loses material while the remaining blades remain intact, the rotating assembly can become imbalanced.

At very high shaft speeds, even a small imbalance can create substantial mechanical loading.

Continued operation could potentially contribute to:

• Bearing wear

• Shaft vibration

• Reduced turbocharger efficiency

• Increased turbocharger noise

• Oil-control problems

• Progressive turbocharger failure

For this reason, replacing the damaged intake component alone may not be sufficient.

The turbocharger should also be inspected.

Symptoms of McLaren 720S Intake Baffle Failure

Not every failure produces the same symptoms.

Depending on the extent and location of the damage, the vehicle may display one or several of the following.

Change in Turbocharger or Intake Noise

One of the first signs can be an unexpected change in induction sound.

Drivers may notice:

• Reduced turbo whistle

• Increased intake roar

• Different induction tone

• Whistling

• Rattling from the intake area

• Unusual noise during boost

A sudden change in induction sound should therefore not automatically be dismissed as normal.

Reduced Performance

A significant intake-system problem can interfere with airflow towards the turbocharger.

The driver may notice:

• Reduced boost

• Slower acceleration

• Hesitation

• Inconsistent turbo response

• Loss of high-RPM performance




Engine Warning Light

Depending on the nature of the failure and resulting airflow behaviour, the ECU may detect a deviation from expected operating conditions.

Possible faults can relate to airflow, pressure or boost performance.

However, an intake baffle can be damaged without immediately producing a warning light.

Mechanical inspection remains important.

How We Inspect a Suspected McLaren 720S Intake Baffle Failure

A proper inspection should extend beyond simply identifying the broken plastic component.

The complete airflow path towards the turbocharger needs to be considered.

Visual Inspection of Both Intake Assemblies

Both sides of the induction system should be inspected.

The technician should look for:

• Cracks

• Missing sections

• Loose material

• Split seams

• Damaged mounting areas

• Deformed plastic

• Displaced internal components

If material is missing, the obvious question becomes:

Where did it go?

That is when turbocharger inspection becomes particularly important.

Inspect the Intake Pipework

The intake tract should be inspected for loose fragments.

Whenever practical, pipework should be removed sufficiently to determine whether material remains trapped inside the intake system.

Any debris should be removed before the engine is operated again.

Inspect the Turbocharger Compressor Wheel

If a baffle has broken, the compressor wheel should be visually inspected.

A borescope can be useful where direct access is restricted.

The compressor should be checked for:

• Nicks

• Chips

• Bent blades

• Scratches

• Impact marks

• Missing blade material

• Evidence of debris

A pristine compressor wheel significantly reduces concern that substantial debris has passed through it, although the entire accessible intake tract should still be checked.

Check Both Sides

The 720S uses two turbochargers and corresponding intake paths.

If one side shows significant ageing or failure, the opposite side should also be inspected carefully.

Both components have experienced similar:

• Vehicle age

• Heat cycles

• Mileage

• Engine vibration

• Environmental conditions

Finding damage on one side is therefore a good reason to examine the other.

What Happens If the Compressor Wheel Is Damaged?

Compressor damage should not be treated casually.

The compressor wheel is a precision component rotating at extremely high speed.

If visible foreign-object damage is present, further evaluation of the turbocharger is required.

The correct repair will depend on the extent of the damage, but continuing to operate a turbocharger with visibly damaged compressor blades can increase the risk of progressive failure.

Simply removing the broken intake fragment does not reverse compressor damage that has already occurred.

Repairing a McLaren 720S Intake Baffle

Several repair approaches may be considered, but they are not technically equivalent.

OEM Replacement

Replacing the affected intake assembly with the appropriate genuine component maintains the factory intake configuration.

Advantages include:

• Factory fitment

• Correct geometry

• Original acoustic behaviour

• OEM appearance

• No experimental modification to the intake system

For an otherwise standard road car, this is normally the most conservative repair approach.

Component compatibility should always be verified using the vehicle VIN and applicable McLaren parts information.

Aftermarket Intake Solution

A high-quality aftermarket intake can potentially replace the original plastic sections with more robust materials.

Depending on the system, construction may include:

• Silicone

• Aluminium

• Composite materials

• Carbon fibre

A correctly engineered system can reduce dependence on ageing OEM plastic components.

However, intake systems should be selected on engineering quality rather than appearance alone.

Important considerations include:

• Filtration quality

• Heat resistance

• Internal geometry

• Hose security

• Sensor compatibility

• Turbocharger protection

• Airflow consistency

• Fitment quality

The turbocharger inlet should never be left inadequately filtered.

Repairing or Bonding a Cracked Baffle

Adhesive or epoxy repairs may appear attractive because they are inexpensive.

However, bonding an already heat-aged plastic component does not reverse the deterioration of the surrounding material.

The repaired area may remain vulnerable to:

• Further cracking

• Adhesive separation

• Vibration

• Continued heat cycling

• Additional material break-off

For this reason, patching should not generally be considered equivalent to replacing a deteriorated component.

Why Simply Deleting the Baffle Is Not the Same as a Proper Intake Upgrade

An acoustic resonator or baffle is not the same thing as an air filter.

Removing a damaged component without ensuring that the remaining intake path is correctly sealed, supported and filtered can create additional problems.

A properly engineered intake modification should maintain:

• Effective filtration

• Secure turbo inlet connections

• Correct sensor operation

• Adequate heat resistance

• Appropriate hose support

• Controlled airflow into the compressor

The objective should be to eliminate the weak component without creating another weak point.

Should Both McLaren 720S Intake Baffles Be Replaced Together?

In Short, YES

Why upgrade one engine bank and leave the other one with the old even working part in?

Considering to go aftermarket should be a complete solution, never a partial one

Preventive Inspection

For older 720S vehicles, high-mileage cars or vehicles frequently exposed to demanding driving conditions, periodic intake inspection is sensible.

Particular attention should be given to cars used for:

• Track driving

• Repeated high-speed use

• Hot-climate operation

• Aggressive road driving

• Modified engine calibration

• Increased boost applications

Higher engine-bay temperatures and more frequent thermal cycling can place additional stress on surrounding components.

Preventive inspection is considerably less expensive than replacing a damaged turbocharger.

Modified McLaren 720S Vehicles Require Particular Attention

A tuned 720S places even greater importance on the condition of the intake and turbocharger system.

Higher engine output normally requires greater airflow through the induction system.

Depending on the calibration, the turbochargers may also operate under increased load.

Before increasing performance, the mechanical condition of the intake system should therefore be confirmed.

A performance calibration cannot compensate for:

• Cracked intake components

• Foreign objects in the turbo inlet

• Damaged compressor blades

• Intake leaks

• Poor filtration

Mechanical integrity comes first.

Frequently Asked Questions

Can I Drive a McLaren 720S With a Cracked Intake Baffle?

It is not advisable to continue driving normally once a damaged baffle has been identified.

The principal concern is that additional material could detach and travel towards the turbocharger.

The safest approach is to inspect the intake and turbocharger before continued high-load operation.

Can a Broken Intake Baffle Damage the Turbo?

Yes.

If fragments enter the turbocharger inlet, they can strike the compressor wheel and create foreign-object damage.

The resulting damage can range from small blade marks to significant compressor damage.

Does a Broken Baffle Always Cause an Engine Warning Light?

No.

A mechanical intake failure may exist before the ECU detects an operating condition significant enough to generate a diagnostic fault code.

Physical inspection remains important.

Should the Turbocharger Be Checked When a Baffle Is Broken?

Yes.

If part of the baffle is missing or there is any possibility that debris travelled downstream, the compressor inlet should be inspected.

Should Both Intake Sides Be Checked?

Absolutely.

If one side has deteriorated, the opposite side has been subjected to similar age, heat cycling and operating conditions.

Are Aftermarket Intakes a Solution?

A high-quality, properly engineered intake system can eliminate certain ageing plastic components and may provide a durable alternative.

However, the system must maintain proper filtration, secure installation and appropriate airflow characteristics.

The Cost of Prevention vs Turbocharger Damage

An intake inspection is relatively straightforward compared with repairing turbocharger damage.

Ignoring a cracked component can potentially turn a relatively contained intake repair into a much more expensive turbocharger-related repair.

This is particularly relevant on a high-performance engine such as the McLaren M840T, where turbocharger condition has a direct influence on:

• Boost response

• Power output

• Airflow

• Efficiency

• Engine reliability

Catching the problem early is therefore the logical approach.

McLaren 720S Intake Inspection and Diagnostics in Marbella

At Torque Tuning CDS, we approach McLaren diagnostics from both a mechanical and performance perspective.

A suspected intake-baffle failure should not simply result in replacing the visible broken component.

The surrounding intake system and turbocharger need to be considered as part of the same failure chain.

Our inspection approach can include:

• McLaren intake-system inspection

• Intake baffle condition check

• Turbocharger compressor inspection

• Borescope inspection where appropriate

• Diagnostic fault-code analysis

• Intake and boost-system assessment

• Datalogging

• Performance-system inspection

• OEM and performance-upgrade consultation

For owners in Marbella, Costa del Sol, Puerto Banús, Sotogrande and surrounding areas, early inspection can potentially prevent a relatively minor intake problem from developing into considerably more expensive turbocharger damage.

Protect the Turbochargers Before the Damage Becomes Expensive

A cracked McLaren 720S intake baffle may initially appear insignificant.

It is not.

Because the component sits upstream of the turbocharger, any detached material has the potential to become a foreign object entering one of the most highly stressed rotating assemblies in the engine.

The correct response is therefore straightforward:

Inspect the damaged intake, locate any missing material, check the turbocharger compressor and repair the root cause properly.

Preventive inspection costs considerably less than discovering compressor-wheel damage after the failure has progressed.
